The test system used in this review was an HP 8200 Elite. The computer came equipped with an Intel Core i5-2400 CPU, 4GB of DDR3 1333MHz memory, Seagate Barracuda 7200.12 ST3250312AS 250GB SATA 6 Gb/s hard drive, NVIDIA Quadro FX580 512MB PCIe graphics card and an Intel 82579-LM gigabit network card. For the operating system, I installed a fresh copy of Windows 7 Enterprise.
To test the performance of the Vertex 3 3.5", I ran a series of benchmarks using CrystalDiskMark 3.0.1, HD Tach RW 3.0.4.0, ATTO Disk Benchmark 2.46, AS SSD, HD Tune Pro 4.61 and Iometer. For comparison, I've also included test results from the Plextor PX-256M3P, SanDisk Extreme, Samsung 830 SSD, Plextor PX-256M3S, Patriot Pyro SE, Plextor PX-256M2P, Kingston HyperX, OCZ Vertex 3 and OCZ Agility 3.
As I mentioned earlier, the Vertex 3 3.5" is based on LSI's SandForce SF-2282 controller. Like other SandForce controllers, the SF-2282 features a technology called DuraWrite, which uses data compression to lower write amplification and extend the life of the drive by reducing the number of program-erase cycles. This data compression also plays a big part in the controller's performance. The more the data can be compressed, the faster an SSD like the Vertex 3 is able to read and write. Looking at the screenshot above, you can see that there is a considerable performance difference when writing incompressible (0%) and compressible (100%) data.
CrystalDiskMark 3.0.1:
First, I ran a few quick tests using CrystalDiskMark. This benchmark tool measures the performance of a storage device by testing its sequential read and write speeds as well as its random read and write speeds using blocks 512K and 4K in size.

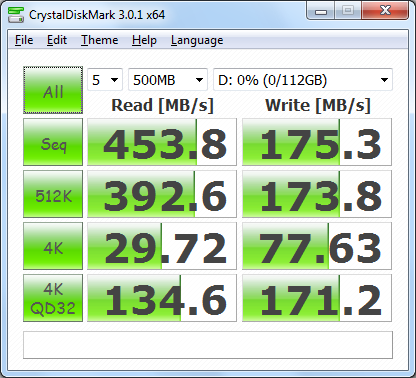

 OCZ Vertex 3 3.5" 120GB |

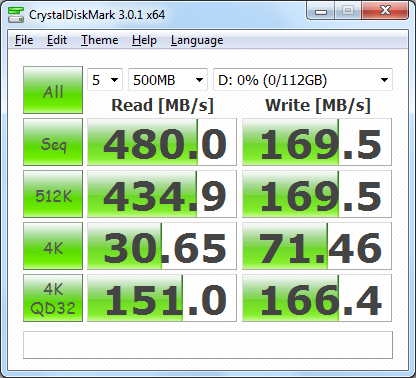

 Kingston HyperX 120GB |
According to OCZ, the 120GB Vertex 3 3.5" is capable of reading at 550MB/s and writing at 500MB/s when connected to a SATA 6 Gb/s port. The drive didn't come close to these numbers using CrystalDiskMark's default (random) test data. However, with the highly compressible 0x00 (0 Fill) data, the Vertex 3 was able to read at 492.3 MB/s and write at 481.2 MB/s.
 OCZ Vertex 3 3.5" 120GB - All 0x00, 0Fill |
 Kingston HyperX 120GB - All 0x00, 0Fill |
HD Tach RW 3.0.4.0:
Next, I used HD Tach to test the Vertex 3's read, write and burst speeds as well as its seek times and CPU usage.
Looking at the screenshot above, you can see that the Vertex 3 3.5" had average read and write speeds of 379.0 MB/s and 371.6 MB/s respectively, as well as a burst speed of 333.5 MB/s.
ATTO Disk Benchmark 2.46:
I also used ATTO Disk Benchmark to test the Vertex 3's sequential read and write speeds. The tests are run using blocks ranging in size from 0.5KB to 8192KB and the total length set to 256MB.
 OCZ Vertex 3 3.5" 120GB |
 Kingston HyperX 120GB |
When tested with ATTO, the Vertex 3's read speeds topped out at about 556 MB/s and its write speeds at 527 MB/s.
