Nero CD Speed v4.7.7.16 - DVD-ROM:
For this test I used a single layer, single sided data DVD-ROM disc that is 4.37GB in size.
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
12.13x 6.75x 16.21x |
12.03x 6.61x 16.09x |
12.13x 6.75x 16.21x |
12.00x 6.57x 16.05x |
Seek Times Random: 1/3: Full: |
103ms 120ms 181ms |
129ms 149ms 232ms |
96ms 110ms 188ms |
115ms 135ms 199ms |
CPU Usage 1x: 2x: 4x: 8x: |
5% 7% 11% 21% |
11% 16% 29% 29% |
8% 5% 10% 19% |
4% 8% 15% 26% |
The iHAS422 was fairly quick when reading single layer DVD-ROM's. In our tests it started reading at 6.61x and reached a maximum transfer speed of 16.09x. Unfortunately, its seek times were not as low as some of the other drives.
Nero CD Speed v4.7.7.16 - DVD-R, DVD-RW and DVD-RAM:
First, we'll look at the drive's DVD-R and DVD-RW reading performance. For this I made copies of our DVD-ROM test disc using some general use 8x DVD-R and 6x DVD-RW media from Verbatim and then ran our usual DVD read tests with CD Speed. For the DVD-RAM tests, media from Maxell was used. The results are below.
Verbatim DVD-R
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
12.14x 6.75x 16.23x |
12.05x 6.63x 16.11x |
12.14x 6.74x 16.23x |
12.04x 6.59x 16.09x |
Seek Times Random: 1/3: Full: |
120ms 128ms 185ms |
129ms 166ms 253ms |
116ms 132ms 201ms |
123ms 154ms 242ms |
CPU Usage 1x: 2x: 4x: 8x: |
6% 6% 12% 25% |
14% 17% 31% 32% |
10% 5% 11% 22% |
5% 9% 16% 28% |
Verbatim DVD-RW
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
9.04x 5.01x 12.08x |
9.78x 5.36x 13.08x |
9.18x 5.08x 12.27x |
9.12x 5.02x 12.19x |
Seek Times Random: 1/3: Full: |
131ms 142ms 200ms |
130ms 163ms 260ms |
124ms 138ms 207ms |
128ms 166ms 258ms |
CPU Usage 1x: 2x: 4x: 8x: |
6% 7% 14% 24% |
5% 16% 17% 30% |
9% 5% 10% 19% |
5% 9% 17% 32% |
Verbatim DVD-R DL
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
9.02x 5.04x 12.02x |
9.01x 4.98x 12.00x |
9.41x 5.23x 12.54x |
9.19x 5.09x 12.25x |
Seek Times Random: 1/3: Full: |
131ms 141ms 210ms |
152ms 172ms 255ms |
126ms 133ms 211ms |
138ms 163ms 243ms |
CPU Usage 1x: 2x: 4x: |
8% 13% 20% |
4% 13% 14% |
12% 7% 13% |
5% 10% 16% |
The iHAS422 had no problems reading DVD-R, DVD-RW and DVD-R DL media. In our tests, the drive read DVD-R discs at 16x, and both DVD-RW and DVD-R DL media at a respectable 12x.
Maxell 12x DVD-RAM
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
10.24x 5.93 12.02x |
10.16x 5.90x 11.98x |
10.33x 5.95x 12.08x |
10.27x 5.92x 12.02x |
Seek Times Random: 1/3: Full: |
132ms 161ms 225ms |
243ms 276ms 392ms |
121ms 136ms 236ms |
180ms 169ms 243ms |
CPU Usage 1x: 2x: 4x: 8x: |
4% 14% 28% 37% |
5% 12% 17% 31% |
8% 6% 10% 19% |
5% 9% 17% 35% |

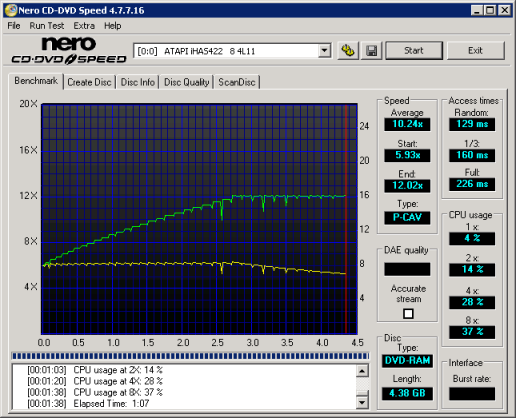

Lite-On's new drive has a maximum transfer speed of 12x when reading DVD-RAM discs. By looking at the screenshot you can see that it starts reading at 5.93x and accelerates, reaching 12x at the 2.7GB mark.
Nero CD Speed v4.7.7.16 - DVD+R and DVD+RW:
Next we'll look at the drive's DVD+R and DVD+RW reading performance. For this I made a copy of our DVD-ROM test disc using some 8x DVD+R and 8x DVD+RW media from Verbatim. I then ran our usual DVD read tests with CD Speed. The results are below.
Verbatim DVD+R
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
12.14x 6.77x 16.24x |
12.06x 6.63x 16.12x |
12.15x 6.73x 16.24x |
12.03x 6.57x 16.08x |
Seek Times Random: 1/3: Full: |
115ms 120ms 181ms |
127ms 160ms 254ms |
117ms 131ms 205ms |
126ms 157ms 263ms |
CPU Usage 1x: 2x: 4x: 8x: |
6% 6% 10% 21% |
12% 32% 18% 31% |
10% 6% 11% 23% |
5% 9% 15% 27% |
Verbatim DVD+RW
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
9.05x 5.07x 12.09 |
9.79x 5.42x 13.08x |
9.19x 5.04x 12.28x |
9.13x 5.04x 12.20x |
Seek Times Random: 1/3: Full: |
123ms 133ms 188ms |
132ms 166ms 264ms |
125ms 134ms 198ms |
121ms 153ms 244ms |
CPU Usage 1x: 2x: 4x: 8x: |
6% 7% 11% 22% |
5% 16% 17% 28% |
9% 5% 10% 19% |
5% 9% 16% 31% |
Verbatim DVD+R DL
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
9.03x 5.08x 12.03x |
9.01x 4.99x 12.01x |
9.42x 5.23x 12.55x |
9.20x 5.09x 12.26x |
Seek Times Random: 1/3: Full: |
123ms 132ms 180ms |
133ms 164ms 255ms |
126ms 132ms 214ms |
135ms 172ms 246ms |
CPU Usage 1x: 2x: 4x: |
8% 13% 20% |
4% 13% 13% |
12% 7% 13% |
4% 9% 16% |
The iHAS422's performance was very similar to what we saw with DVD-R, DVD-RW and DVD-R DL media. The drive read DVD+R discs at 16x and both DVD+RW and DVD+R DL media at 12x.
Nero CD Speed v4.7.7.16 - DVD-Video:
For these tests I am using the US version of Transformers: The Movie on DVD. The disc is over 4GB and single sided.
Lite-On iHAS422 |
Optiarc AD-7240S |
Samsung SH-S223Q |
LG GH22LP20 |
|
Transfer Speed Average: Start: End: |
11.98x 6.68x 16.02x |
11.91x 6.54x 15.94x |
12.00x 6.66x 16.05x |
4.50x 2.48x 6.01x |
Seek Times Random: 1/3: Full: |
103ms 123ms 175ms |
136ms 148ms 232ms |
97ms 114ms 186ms |
138ms 160ms 222ms |
CPU Usage 1x: 2x: 4x: 8x: |
4% 7% 11% 21% |
11% 16% 29% 29% |
8% 6% 11% 21% |
5% 9% 16% n/a |
The iHAS422 didn't slow down very much when reading single layer DVD videos. It started out at about 6.68x and reached a maximum read speed of 16.02x. Lite-On's new drive was also fairly quick when reading dual layer discs. By looking at the screenshot below, you can see that the drive's transfer speeds peaked at about 12x.
To see how well the iHAS422 worked as a DVD player, I watched a few scenes from Transformers: The Movie and Star Wars: Revenge of the Sith using Nero Showtime. The drive had no problems playing back these movies with either program and was fairly quiet.
