The GGW-H20L LG sent us was an early production sample. While the drive came in a retail box with the bundled software burned to a CD-R disc, it did not include a manual or any extras such as blank media or cables.
Physical Features:

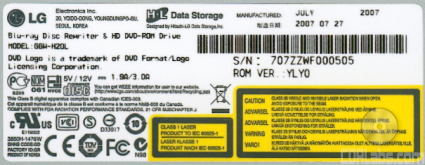

The drive LG sent us for this review was manufactured in July of 2007 and had firmware version YLY0. For this review we used firmware versions YLY0 and YL01.
From the front, the GGW-H20L looks nothing like LG's previous Super Multi Blue drive, the GGW-H10N. The drive sports a more sophisticated look, thanks in part to its glossy black plastic and silver highlights. As you can see, the GGW-H20L also has its share of logos. Along with the large "Super Multi Blue" and "LG" logos, you can see a few showing support for Blu-ray Disc and HD DVD.
Below the tray you can see the GGW-H20L's single LED. Off by default, this LED lights up a bright blue whenever the drive is reading or writing.

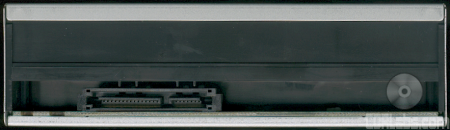

The rear of the GGW-H20L is pretty straightforward. By looking at the picture above you can see the drive's SATA interface and power connector.
Technical Specs:
The specs below have been taken from LG's website and the manual that came with the drive.
| LG GGW-H20L Super Multi Blue BD ReWriter & HD DVD-ROM |
|
| BD-R Write Speeds | 6x (CAV) 4x, 2x (CLV) |
| BD-RE Write Speeds | 2x (CLV) |
| BD-R DL Write Speeds | 4x, 2x (CLV) |
| DVD+R Write Speeds | 16x, 12x, 8x (P-CAV) 4x, 2.4x (CLV) |
| DVD+RW Write Speeds | 8x (Z-CLV) 6x, 4x, 2.4x (CLV) |
| DVD-R Write Speeds | 16x, 12x, 8x (P-CAV) 4x, 2x, 1 (CLV) |
| DVD-RW Write Speeds | 6x, 4x, 2x, 1x (CLV) |
| DVD+R DL Write Speeds | 4x, 2.4x (CLV) |
| DVD-R DL Write Speeds | 4x, 2x (CLV) |
| DVD-RAM Write Speeds | 5x (P-CAV) 3x, 2x (Z-CLV) |
| CD Write Speeds | 40x, 32x, 24x (P-CAV) 16x, 8x, 4x (CLV) |
| CD Rewrite Speeds | 24x (Z-CLV) 16x, 10x, 4x (CLV) |
| BD Read Speeds | 6x Max (BD-ROM Single Layer) 4.8x Max (BD-ROM Dual Layer) 6x Max (BD-R) 4.8x Max (BD-R DL) 2x Max (BD-RE) 4.8x (BDMV) |
| HD DVD Read Speeds | 3x Max (HD DVD-ROM Single Layer) 3x Max (HD DVD-ROM Dual Layer) |
| DVD Read Speeds | 16x Max (DVD-ROM Single Layer) 8x Max (DVD-ROM Dual Layer) 12x Max (DVD±R) 10x Max (DVD±RW) 8x Max (DVD±R DL) 8x Max (DVD-Video) 5x, 3x, 2x (DVD-RAM) |
| CD Read Speeds | 40x Max |
| DAE Speeds | 40x Max |
| Buffer Size | 4 MB (DVD, BD and HD DVD) 2 MB (CD) |
| Access Times |
180 ms (BD-ROM) 210 ms (HD DVD-ROM) 160 ms (DVD-ROM) 180 ms (DVD-RAM) 150 ms (CD) |
| CD Formats | CD-DA CD-ROM CD-ROM XA CD-I Video CD Photo CD CD-Extra CD-Text CD-R CD-RW |
| DVD Formats | DVD-ROM DVD-Video DVD+R/RW DVD-R/RW DVD+R DL DVD-R DL |
| BD Formats | BD-ROM BD-R/RE BD-R/REDL |
| HD DVD Formats | HD DVD-ROM |
| BD-R Recording Modes | Sequential Recording Mode With And Without Pseudo-Overwrite |
| BD-RE Recording Modes | Random Write |
| DVD+R Recording Modes | Sequential Recording |
| DVD+RW Recording Modes | Random Write |
| DVD+R DL Recording Modes | Sequential Recording |
| DVD-R Recording Modes | Disc At Once Incremental Recording |
| DVD-RW Recording Modes | Disc At Once Incremental Recording Restricted Overwrite |
| DVD-R DL Recording Modes | Disc At Once Incremental Recording Layer Jump Recording |
| CD Recording Modes | Disc At Once Session At Once Track At Once Packet Writing |
LightScribe:
Note: We took a much closer look at LightScribe technology in our review of the BenQ DW1625. In this review we'll just go over some of the basics and see how the GGW-H20L performs with the bundled software.
The GGW-H20L is one of the first Blu-ray Disc writers to feature LightScribe technology. Developed by HP, LightScribe lets you burn durable, silk screen quality labels directly onto your CD's and DVD's using the same drive that burned the data. According to HP, it's as simple as burning the data, flipping the disc, and then burning the label.
Of course you can't do this with just any drive, media or software. While LightScribe capable drives use the same laser when burning both the data and label, they have to be able to accurately control the laser's focus and position as well as the spindle speed. They also must be able to recognize LightScribe media. These special discs have a thin dye coating on the label side that absorbs laser light. This triggers a chemical reaction that produces a color change, allowing the user to print text, artwork or graphics.

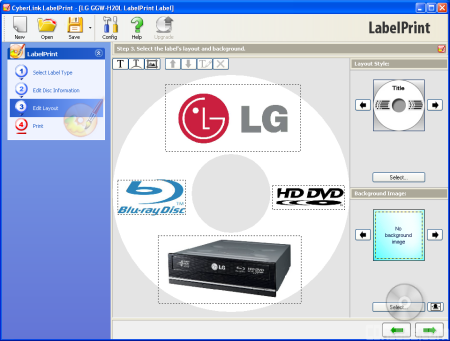

Even if you have a LightScribe capable drive and media, you will need software that supports it. Most major software companies have pledged support for the technology. However, at the time of this review, the list of compatible software is still relatively short. For the GGW-H20L, LG turned to CyberLink. Using the bundled LabelPrint software you can create and burn LightScribe disc labels.
Once you've created your LightScribe label, you're ready to print it. Before you can do this though, you will need to choose the contrast. Keep in mind this option not only changes the level of detail, it also affects the amount of time it takes to print the label. The higher the quality, the longer the process will take.

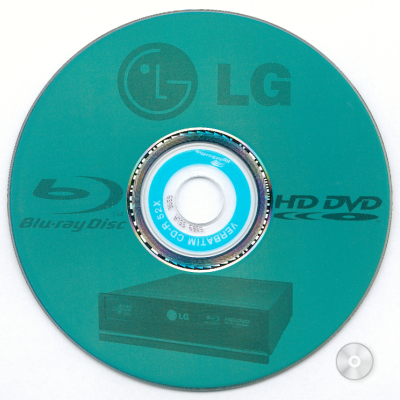

How long does it take to print a label? For testing purposes, we printed a disc using Verbatim's LightScribe v1.2 color CD-R media. For testing purposes, the quality has been set to "best". The results are shown below.
 |
| Verbatim CD-R v1.2 - 24 minutes |
More Features:
By looking at the picture below, you can see that LG's new Super Multi Blue drive is identified as an "HL-DT-ST BD-RE GGW-H20L."
The Nero screenshot also shows that the GGW-H20L has a maximum CD writing speed of 40x and a 2048KB buffer. This buffer is also backed up by some form of buffer underrun protection. According to Nero, the GGW-H20L can write CD-Text and overburn. When testing the drive's capacity I found that the drive was able to overburn up to 95:10with CompUSA's 99 minute CD-R media.
Using Alex Noe's Weak Sector Utility we were able to determine that the GGW-H20L is a "two sheep" burner. This means that LG's new drive is capable of backing up titles protected by SafeDisc 2, including version 2.51.

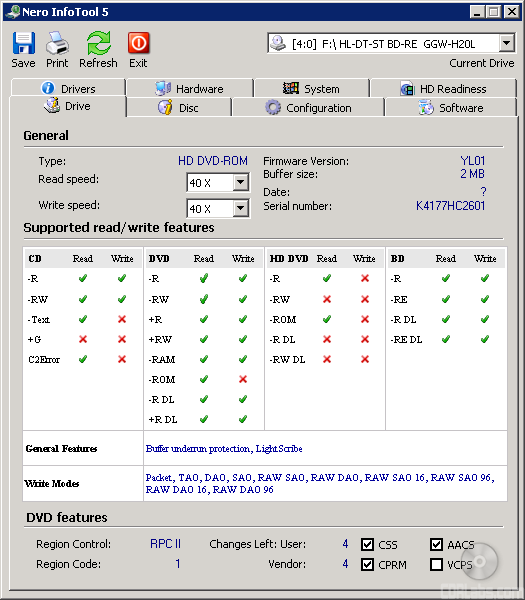

Here is a screen shot from Nero's InfoTool. This program queries the drive to see what its reading and writing capabilities are. InfoTool had no problems detecting the GGW-H20L's maximum reading and writing speeds, recording modes, buffer underrun protection and 2MB buffer.
InfoTool also shows that the GGW-H20L is an RPC-2 DVD drive. This means that the drive's region is stored in the firmware. The drive's region can be changed five times and after that it cannot be changed anymore. Unfortunately, a patched RPC-1 firmware is not yet available for this drive.
While InfoTool gives us a quick glance at the GGW-H20L's features, DVDINFOpro provides a little more information on some of the drive's reading and writing capabilities. By looking at the screenshot above you can see that LG's new drive can read and write to most BD and DVD formats and has the ability to read HD DVD-ROM discs.
LG's new drive also supports a feature called "bitsetting." Using a program like Nero, you can set the book type of both DVD+R and DVD+R DL media to "DVD-ROM". Contrary to what CD Speed may indicate, the drive does not let you set the book type of DVD+RW discs.
